These two boards were scanned at 300dpi. The full board shots were then reduced in size to be 800 pixels wide, and saved as medium resolution JPEGs.

The Closeup shot of the G227 is a cropped 300dpi image that shows the maximum detail possible and then saved as a medium resolution JPEG. It is included to show the level of detail possible with only a 300dpi scanner. Remember with scanners, only the optical resolution counts.

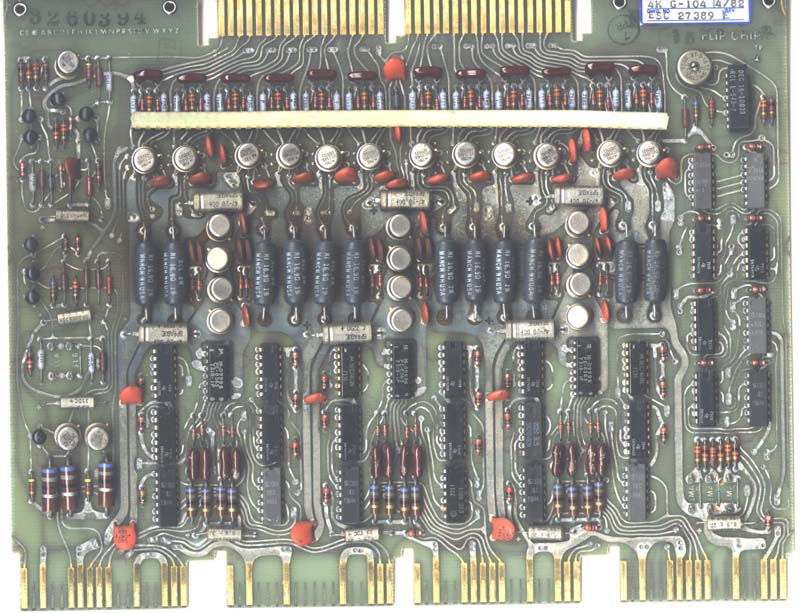

G104

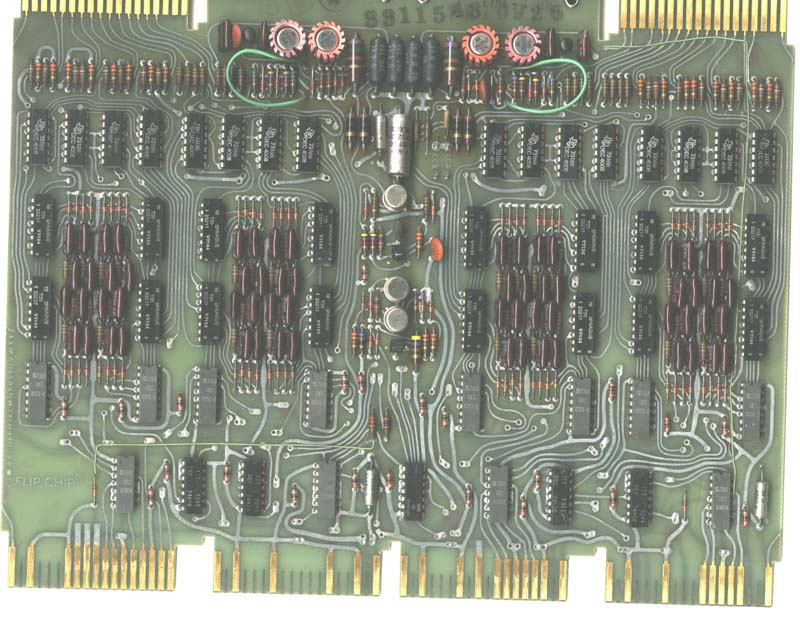

G227

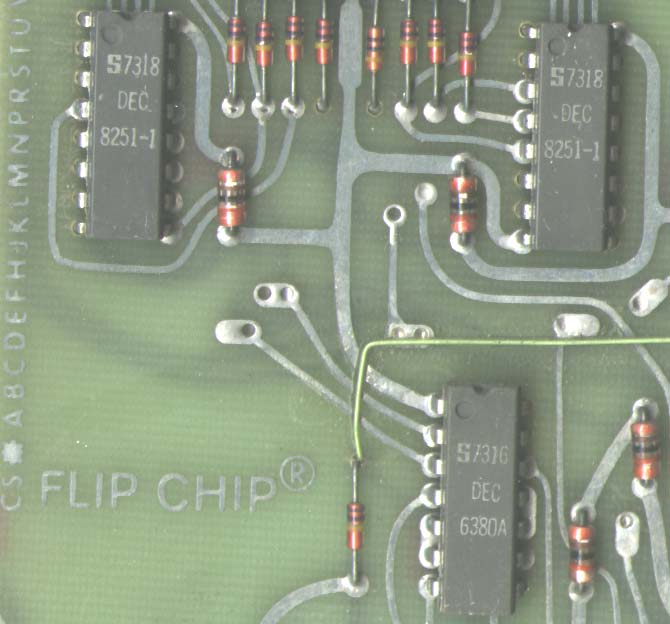

Closeup of G227
